Details
Filter monitoring
Monitoring of filters in drinking water supplies
Process data
Measuring task
Differential pressure measurement
Measuring point
Filter
Measuring range up to
0.8 m
Medium
Fresh water
Process temperature
+3 … +10 °C
Process pressure
-0.5 … +2 bar
Special challenges
Abrasion
Application

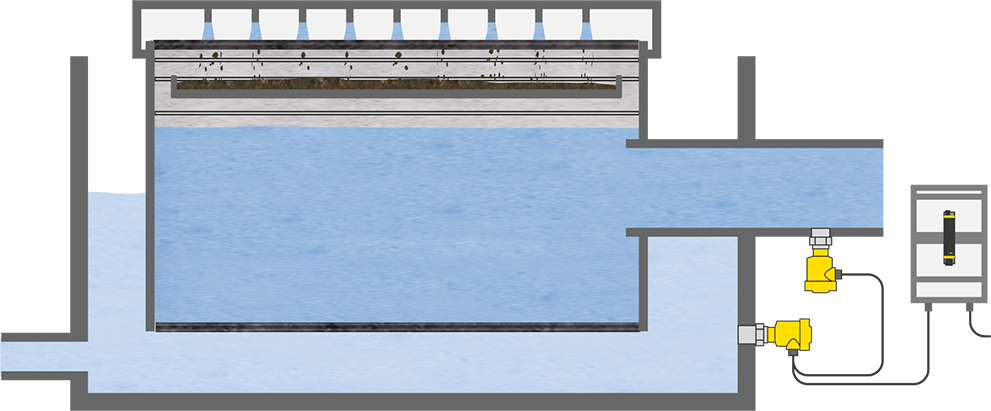

The raw water is pumped from the lake into a tank. It is then filtered via a drum filter. In this process the water is separated and purified from any suspended matter and coarse impurities. An electronic differential pressure measuring instrument monitors the level of contamination of the filter. Cleaning of the filter is automatically triggered as soon as the threshold contamination is exceeded.
Your benefit
Reliable
Approved materials according to FDA and EC 1935/2004, as well as local certification
Cost effective
Simple installation, with two sensors interconnected via a single cable
User friendly
Multivariable sensor: differential pressure, static pressure and temperature
Recommended products
VEGABAR 82
Filter monitoring via electronic differential pressure measurement
- Long-term stability and reliability thanks to the use of moisture-proof measuring cell
- Integrated temperature sensor saves purchase of additional temperature measuring instruments
- Highly resistant to abrasive particles thanks to the ceramic CERTEC® measuring cell
Measuring range - Distance
-
Measuring range - Pressure
-1 ... 100 bar
Process temperature
-40 ... 150 °C
VEGATRENN 141
Separator for the optimum supply of power to the connected sensors
- On-site diagnostics for direct display of status via LEDs
- Simple parametrization interface using the HART sockets for user-friendly operation
- Galvanic separation of sensors and PLC is secured
Protection rating
IP 20
Input
1 x 4 … 20 mA/HART sensor input
Output
1 x 4 … 20 mA
