Pressure monitoring and point level detection in the drinking water pipeline
Category: Water and wastewater
Specifications
Details
Drinking water pipeline
Pressure monitoring and point level detection in the drinking water pipeline
Process data
Measuring task
Pressure measurement and point level detection
Measuring point
Pipeline
Measuring range up to
20 bar
Medium
Drinking water
Process temperature
0 … +20 °C
Process pressure
0 … +20 bar
Special challenges
Surges in pressure
Application
To transport drinking water even to the remotest drinking water storage facilities, pumping stations generate the required water pressure, which is constantly monitored by a pressure transmitter. A level switch serves as dry run protection for the pumps.
Your benefit
Reliable
Approved materials according to FDA and EC 1935/2004, as well as local certification
Cost effective
Long service life guarantees uninterrupted operation
User friendly
Uniform operation
Recommended products
VEGABAR 82
Pressure transmitter for monitoring pressure in the drinking water pipeline
- CERTEC® measuring cell meets the highest hygiene requirements
- Long-term stability thanks to robust ceramic CERTEC® measuring cell
- Resistant to hydraulic pressure shocks
Measuring range - Distance
-
Measuring range - Pressure
-1 ... 100 bar
Process temperature
-40 ... 150 °C
VEGASWING 61
Vibrating level switch as dry run protection for drinking water pumps
- Reliable function ensured thanks to product-independent switching point
- Simple function test via push of a button
- Adjustment-free setup and commissioning
Measuring range - Distance
-
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
VEGATRENN 141
Supply isolator for optimum supply of power to the connected VEGABAR 82
- On-site diagnostics for direct display of status via LEDs
- Simple parametrization interface via HART sockets for convenient operation
- Galvanic separation between sensor and PLC is ensured
Protection rating
IP 20
Input
1 x 4 … 20 mA/HART sensor input
Output
1 x 4 … 20 mA

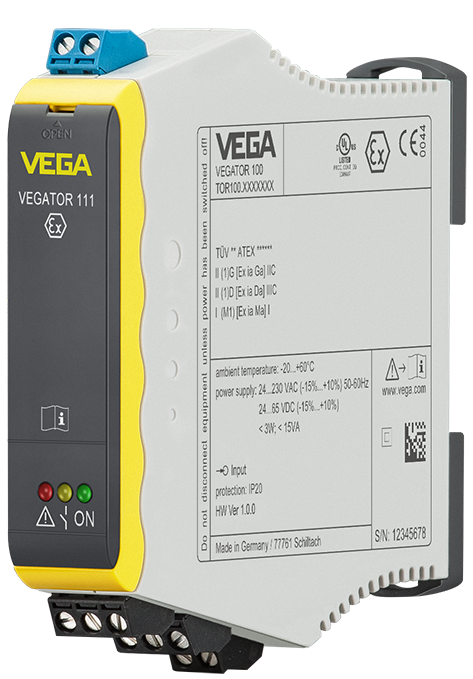

VEGATOR 111
Supply isolator for optimum supply of power to the connected VEGASWING 61
- On-site diagnostics for direct display of status via LEDs
- Reliable power supply and switching state analysis via NAMUR two-wire circuit
Protection rating
IP 20
Input
1 x sensor input NAMUR (IEC 60947-5-6)
Output
1 x operating relay (SPDT)
Optionally 1 x fail safe relay output (SPDT)
