Level measurement and point level detection in a separator vessel tank for recovery of raw materials
Category: Chemical
Specifications
Details
Separation vessel

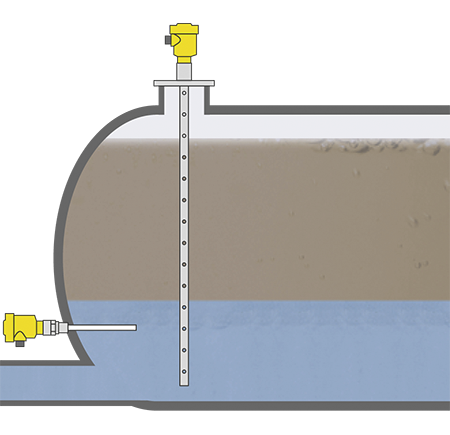

Level measurement and point level detection in a separator vessel tank for recovery of raw materials
 |
|
Process data
Measuring task
Level and interface measurement, point level detection
Measuring point
Vessel
Measuring range up to
15 m
Medium
Water-based media and hydrocarbons
Process temperature
+20 … +80 °C
Process pressure
0 … +16 bar
Special challenges
Alternating media properties, emulsions
Application
These processes often involve the separation of water-based media from hydrocarbons. In most applications, the upper, lighter medium is electrically non-conductive. Guided radar level measurement makes use of the effect that non-conductive media allow some of the radar energy to pass through, thus enabling a measurement of the interface between the water-based lower medium and the hydrocarbons.
Your benefit
Reliable
Reliable measurement of the interface (separation layer)
Cost effective
Maintenance-free operation
User friendly
Easy setup and commissioning
Recommended products
VEGAFLEX 81
Level and interface measurement with guided radar in the separation tank
- Total level and position of the interface are reliably detected with a rod or coaxial sensor
- Separation layer thicknesses from 50 mm can be measured
- VEGAFLEX 81 measures reliably and accurately, even in emulsion phases
- Simple setup and maintenance-free operation
Measuring range - Distance
75 m
Process temperature
-60 ... 200 °C
Process pressure
-1 ... 40 bar
VEGACAP 63
Capacitive level switch for conductive liquids for level measurement in the separation tank
- Reliable differentiation between conductive and non-conductive media
- Reliable level measurement of the separated water quantity for disposal
- Simple mounting and calibration
Process temperature
-50 ... 200 °C
Process pressure
-1 ... 64 bar
Version
PE insulation
PE insulation and concentric tube
PTFE insulation
PTFE insulation with screening tube PN1
PTFE insulation with screening tube PN16
PTFE insulation with screening tube PN40
PTFE insulation and concentric tube
