Dissolving tank
Level measurement in a dissolving tank
 |
|
Process data
Measuring task
Level measurement
Measuring point
Tank
Measuring range up to
4 m
Medium
Sodium hydroxide, water, naphthols
Process temperature
+20 ... +24 °C
Process pressure
0 … 0 bar
Special challenges
Foaming, agitator
Application

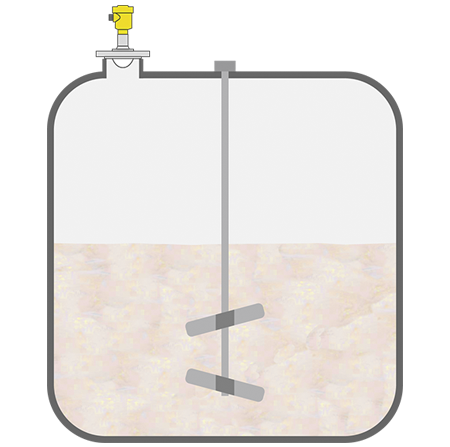

The precursors for the manufacture of colour pigments are dissolved in the dissolving tank. These precursors are mainly Naphtha based, and, depending on the formulation, water and sodium hydroxide solution are added as solvents for the production of the basic pigment solution. An agitator ensures uniform mixing of substances as they are added. The level measuring system is needed to ensure reliable values that are delivered to the control system.
Your benefit
Reliable
Measurement is independent of the process conditions
Cost effective
Reliable, maintenance-free operation
User friendly
Simple installation from above through a small opening
Recommended products
VEGAPULS 64
Non-contact level measurement with radar in the dissolving tank
- Accurate measuring results independent of pressure, temperature, gas and steam
- Long service life thanks to highly resistant materials
- Reliable measuring results unaffected by foam and agitators
Measuring range - Distance
30 m
Process temperature
-196 ... 200 °C
Process pressure
-1 ... 25 bar
