Details
Stripper
Level measurement in the stripper
 |
|
Process data
Measuring task
Level measurement
Measuring point
Tank
Measuring range up to
1 m
Medium
Urea
Process temperature
+200 ... +250 °C
Process pressure
+140 … +150 bar
Special challenges
Highly aggressive media
Application

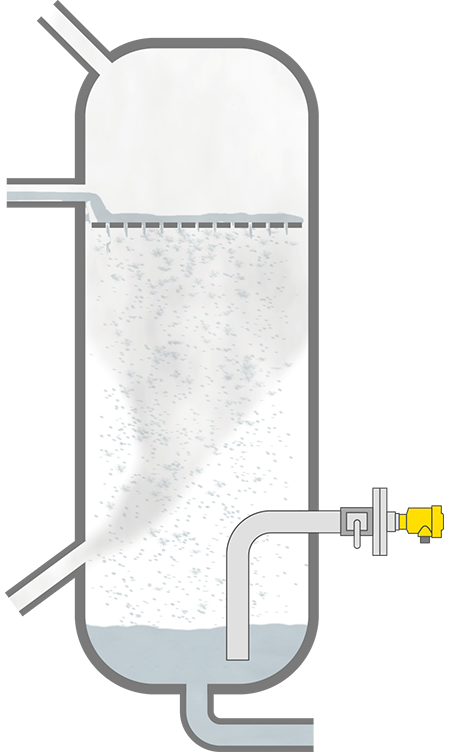

Impurities are separated from urea in a special process tank, the so-called stripper. The unwanted substances are removed from the urea by means of a counter current of carbon dioxide to the flow from the urea solution leaving the reactor. The urea itself collects at the bottom of the stripper. The filling height in the urea sump must be monitored and kept constant.
Your benefit
Reliable
Reliable measurement in highly corrosive media
Cost effective
Special high-resistance steel for long service life
User friendly
Simple installation, even in tight spaces
Recommended products
VEGAPULS 66
Non-contact level measurement with radar in a standpipe
- Angled standpipe version enables lateral mounting
- Special Safurex® steel for corrosion resistance in highly aggressive media
- Reliable measuring results in challenging process conditions
Measuring range - Distance
35 m
Process temperature
-60 ... 400 °C
Process pressure
-1 ... 160 bar
