Digester

Level measurement and point level detection of foam in the digester

Application

In heated, closed digesters, the organic components of the sludge are decomposed under anaerobic conditions. Combustible gases such as methane are released from the sludge retrieved and used as fuel for heating.

Recommended Products

VEGACAP 64

Detection of the conductive foam prevents it from entering the gas facility

Reliable foam detection, even with different foam consistencies
Unaffected by contamination and buildup
Simple mounting and setup

Process temperature

-50 ... 200 °C

Process pressure

-1 ... 64 bar

Version

PTFE insulation

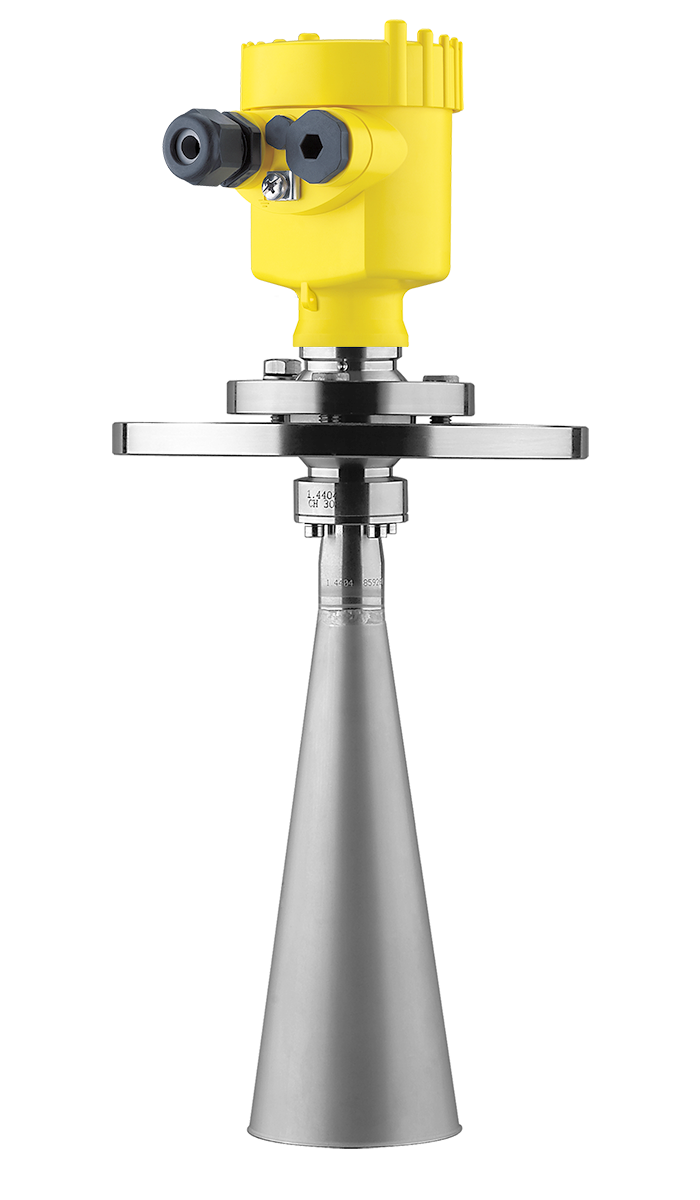

VEGAPULS SR 68

Accurate, reproducible measured values for control of the filling process

Reliable measurement, even with foam and density changes
Independent of gas concentration and pressure fluctuations
Maintenance-free operation with non-contact measurement

Measuring range - Distance

30 m

Process temperature

-40 ... 250 °C

Process pressure

-1 ... 100 bar

VEGATOR 142

Double channel signal conditioning instrument for level detection

Simple adjustment of the switching point through a potentiometer
Clearly visible switching status via LED
Simple installation through carrier rail mounting as well as detachable, coded terminals

Protection rating

IP 20

Input

2 x 4 … 20 mA sensor input

Output

2 x operating relay (SPDT)

View more about Level measurement and point level detection of foam in the digester on main site
