Oil feed tank

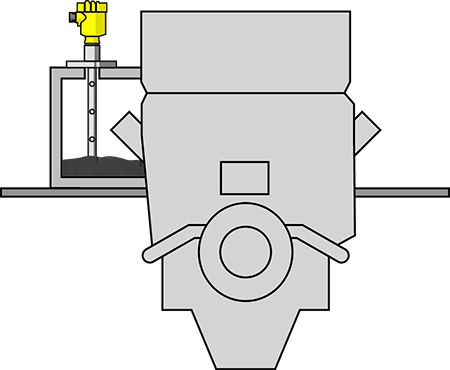

Turbine oil feed tank level measurement
 |
|
Process data
Measuring task
Level measurement
Measuring point
Oil sump in the turbine
Measuring range up to
3 m
Medium
Lubricating oil
Process temperature
+50 … +80 °C
Process pressure
0 … 0 bar
Special challenges
Low dielectric constants
Application
Turbines are highly complex systems in which lubricating oil plays an important role. The oil is used to ensure proper operation, to reduce maintenance costs to a minimum and to prevent turbine failure. Turbine oils are produced from high quality mineral oils that have special properties to reduce demulsification (separation of water) and air release. The level in the feed tank must be monitored to ensure that there is always enough oil available for lubrication.
Your benefit
Reliable
Reliable measurement of the level
Cost effective
Maintenance-free measurement with high accuracy
User friendly
Reliable, continuous operation
Recommended Products
VEGAFLEX 81
Level measurement with guided radar for reliable data on the oil level in the turbine
- Reliable, maintenance-free measurement
- High measurement certainty, even with heavy buildup
- Modern measuring technique guarantees high operational reliability
Measuring range - Distance
75 m
Process temperature
-60 ... 200 °C
Process pressure
-1 ... 40 bar
