Level measurement and point level detection in storage tanks for acids
Category: Energy
Specifications
Details
Storage tanks for acids

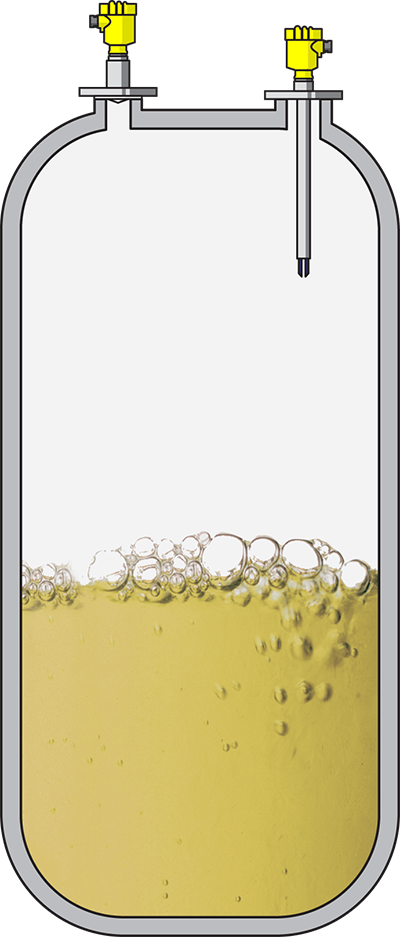

Level measurement and point level detection in storage tanks for acids
 |
|
Process data
Measuring task
Level measurement and point level detection
Measuring point
Tank
Measuring range up to
4 m
Medium
Sulphuric or hydrochloric acid
Process temperature
-40 … +50 °C
Process pressure
0 … 0 bar
Special challenges
Aggressive media
Application
The raw water, which is usually extracted from a river, cannot be fed untreated directly into the turbine circuit of the plant. It has to be treated first. To neutralize the water, either sodium hydroxide (NaOH) or hydrochloric acid (HCl) is added. Level sensors supply the measurement data required to ensure a high availability of these chemicals and others used to treat the feed water.
Your benefit
Reliable
High operational reliability through the use of chemically resistant materials
Cost effective
Yearly WHG test can be carried out by pressing a button
User friendly
Reliable, maintenance-free measurement
Recommended Products
VEGAPULS 63
The non-contact radar sensors are optimized for reliable measurement of aggressive media
- High acid resistance through optimized antenna design
- Reliable technology ensures high measurement certainty
- Very high operational reliability and long service life thanks to non-contact measuring method
Measuring range - Distance
35 m
Process temperature
-196 ... 200 °C
Process pressure
-1 ... 16 bar
VEGASWING 63
The universally applicable vibrating level switch reliably prevents an overfilling of the container
- Product-independent switching point ensures millimetre-exact detection of the limit level
- Minimal costs for maintenance and servicing
- Available in different materials, includes Ex, WHG and SIL2 approvals
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
Version
Standard
Hygienic applications
with gas-tight leadthrough
with tube extension
with temperature adapter
