Wastewater basin
Level measurement in the wastewater basin
 |
|
Process data
Measuring task
Level measurement
Measuring point
Open basin
Measuring range up to
3 m
Medium
Wastewater
Process temperature
+10 … +30 °C
Process pressure
0 … 0 bar
Special challenges
Aggressive media
Application

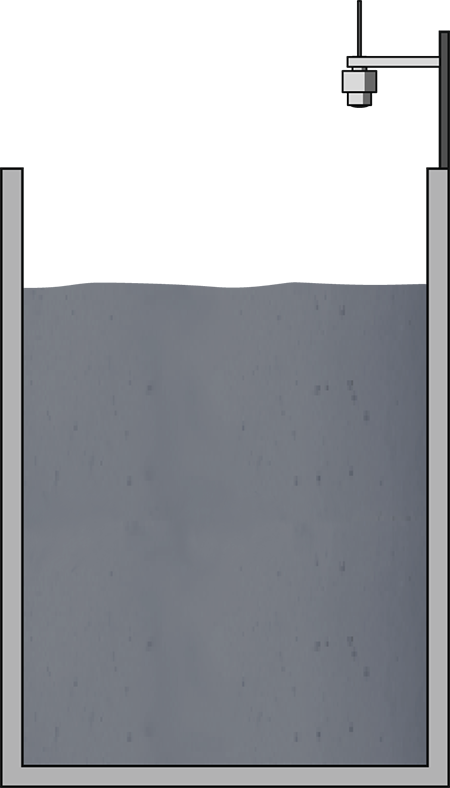

The wastewater created in the power plant is collected in a basin and fed into a treatment system. This is where wastewater from the chemical treatment, the slag cooling, the sanitary facilities as well as surface water and oil contaminated fluids are neutralised and treated. Immersion proof sensors are needed to measure the levels of these large amounts of water in the basins reliably and accurately.
Your benefit
Reliable
Reliable measurement despite strong foam generation
Cost effective
Simple mounting and reliable readings
User friendly
Maintenance-free and universally applicable
Recommended products
VEGAPULS WL 61
Thanks to its encapsulated housing design, the radar instrument measures the level reliably in all weathers and surface conditions, even if submersed
- Precise measuring results, even with strong foam generation
- Maintenance-free, non-contact measurement and high protection IP 68
- Reliable measuring results despite changing environmental conditions
Measuring range - Distance
15 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 2 bar
