Details
Storage tanks for fire water

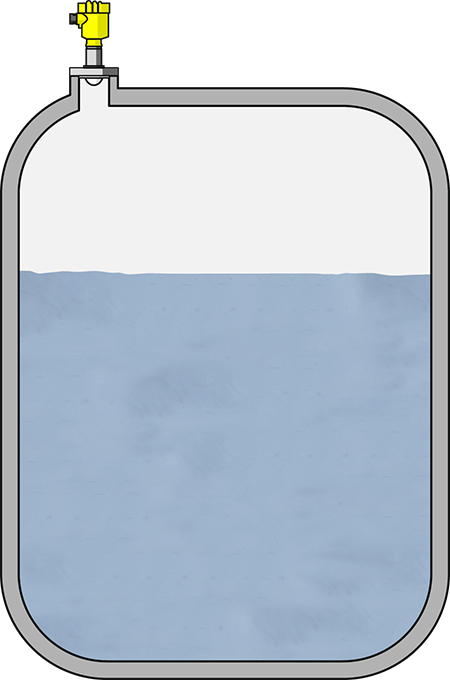

Level measurement in storage tanks for fire water
 |
|
Process data
Measuring task
Level measurement
Measuring point
Storage tank, storage container and basin
Measuring range up to
30 m
Medium
Extinguishing water
Process temperature
-40 … +50 °C
Process pressure
0 … 0 bar
Special challenges
Large measuring ranges
Application
To ensure fire safety, power plants are required to have an adequate supply of extinguishing water on hand for the fire brigade. The water is usually provided through a central fire water main. To make sure there is always a minimum supply on site, trustworthy level measuring instruments are deployed in the fire water
Your benefit
Reliable
Reliable content measurement in the fire water tank
Cost effective
Maintenance-free operation through non-contact measurement
User friendly
Simple mounting and setup
Recommended Products
VEGAPULS 62
Non-contact radar level measurement in liquids
- Simple installation and setup on existing tanks without emptying the container beforehand
- High measurement certainty, because condensation does not affect the measuring results
- Robust design ensures maximum operational reliability, even with large distances up to 30 m
Measuring range - Distance
35 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
