Cooling tower basin
Cooling tower basin level measurement
 |
|
Process data
Measuring task
Level measurement
Measuring point
Cooling tower basin
Measuring range up to
5 m
Medium
Water
Process temperature
+20 … +40 °C
Process pressure
0 … 0 bar
Special challenges
High humidity and steam
Application
At the bottom of the cooling tower there are nozzles for atomizing and cooling incoming hot water. As the heated water is sprayed up inside the cooling tower, it warms the air, which expands, flows upward creating updraft which pulls fresh cold air up through the slatted bottom. Draft eliminators inside the cooling tower cause the cooled water to form droplets and rain back down into the cooling tower basin. The water level in the cooling tower basin must be monitored continuously to optimise use of the circulation pumps and the cooling process.
Your benefit
Reliable
Reliable operation under all operating conditions
Cost effective
Maintenance-free operation of the plant
User friendly
Simple mounting and setup
Recommended products

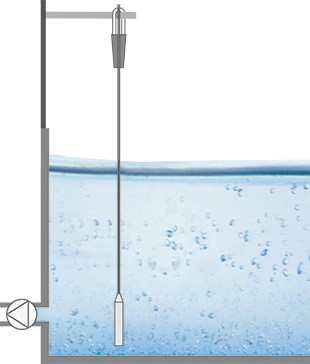

VEGAWELL 52
Hydrostatic level measurement for continuous monitoring of the water level in the cooling tower basin
- Long-term stability thanks to oil-free, ceramic-capacitive CERTEC® measuring cell
- High overload resistance ensures reliable measurement at all times
- Simple installation from the top or side
Measuring range - Pressure
0 ... 60 bar
Process temperature
-20 ... 80 °C
Process pressure
-
