Steam drum

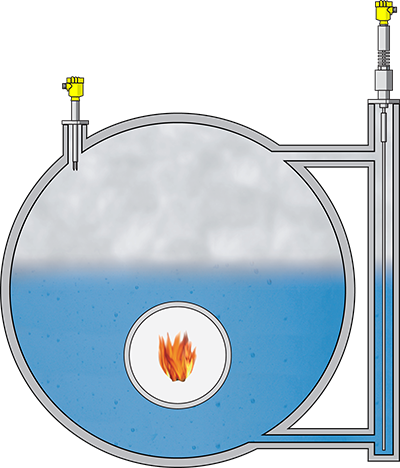

Level measurement and point level detection in the steam drum
 |
|
Process data
Measuring task
Level measurement and point level detection
Measuring point
Steam drum
Measuring range up to
3 m
Medium
Condensate
Process temperature
+180 … +400 °C
Process pressure
+40 … +160 bar
Special challenges
High pressures and temperatures, steam
Application
Process heat in a power plant is provided by steam at different pressures. The required process temperature is regulated via the steam pressure. Depending on the process temperatures there can be pressures up to 160 bar, at temperatures up to 400 °C in the steam drums. Reliable control of water levels and fail safe limit of high and low water in the steam vessels are crucial for the safe operation of the plant.
Your benefit
Reliable
Reliable measurement through automatic measurement correction
Cost effective
Optimal operation of the facility
User friendly
Simple mounting and setup
Recommended Products
VEGAFLEX 86
Precise, continuous measured values in saturated steam with guided radar
- High plant safety via self-monitoring in extreme process temperatures and pressures
- Reliable measured values through automatic measurement correction (integrated steam compensation)
- Safe for use up to SIL2/3 according to IEC 61508
Measuring range - Distance
75 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 400 bar
VEGASWING 66
The vibrating level switch is used in the steam drum as a high and low water limiting device
- High security through self-monitoring of sensor element and electronics at high process temperatures and pressures
- Fast and reliable function test via the press of a button
- Flexible and trustworthy in applications up to SIL3
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
Version
Compact version
with gas-tight leadthrough
with tube extension
