Heating condenser
Level measurement in the heat condenser
 |
|
Process data
Measuring task
Level measurement
Measuring point
Bypass tube
Measuring range up to
3 m
Medium
Condensate
Process temperature
+100 … +200 °C
Process pressure
+6 … +15 bar
Special challenges
High pressures and temperatures
Application

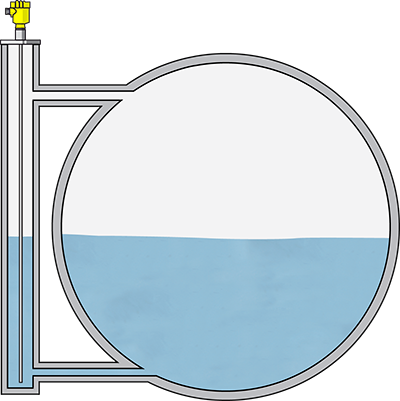

In the heating condenser, steam is used to provide energy for a district heating network. The outgoing temperature of the heating water is controlled by the prevailing weather conditions. As part of this system, level sensor mounted in a bypass tube measures level of the condensate.
Your benefit
Reliable
Reliable measurement of process water volume
Cost effective
Maintenance-free measurement with high accuracy
User friendly
Simple mounting and setup
Recommended Products
VEGAFLEX 81
The guided radar sensor measures the level of the condensate in a bypass tube
- High measurement certainty despite large temperature and pressure fluctuations, high temperatures and steam
- Easy retrofit to existing installations
- A variety of sensor designs for different installation conditions
Measuring range - Distance
75 m
Process temperature
-60 ... 200 °C
Process pressure
-1 ... 40 bar
