Reservoir at the pumped storage power plant
Level measurement at the reservoir
 |
|
Process data
Measuring task
Level measurement
Measuring point
Basin, reservoir
Measuring range up to
70 m
Medium
Water
Process temperature
0 … +25 °C
Process pressure
0 … 0 bar
Features
Wind, weather, temperature changes, ice formation
Application
Pumped storage power plants store a large amount of energy and feed it into the grid very quickly when necessary. One important parameter is the height of the water level in the reservoir. It allows calculations to be made about the amount of energy available and the existing storage volume in pump operation mode. High reliability is required from the measurement technology deployed, because the sensors are often mounted at very remote locations.
Your benefit
Reliable
Ensures reliable efficient, optimal operation of the hydroelectric plant
Cost effective
Maintenance-free measurement
User friendly
Simple installation on existing structures
Recommended Products

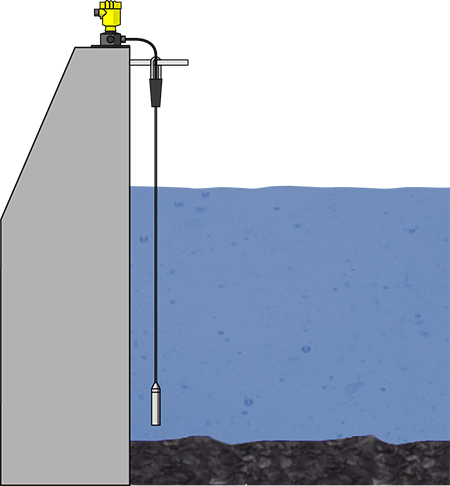

VEGAWELL 52
Hydrostatic level measurement for monitoring the water level in the reservoir
- Robust submersible pressure sensor design ensures high availability
- Wear-free ceramic measuring cell minimizes maintenance costs
- Simple mounting and setup
Measuring range - Pressure
0 ... 60 bar
Process temperature
-20 ... 80 °C
Process pressure
-
