Crusher

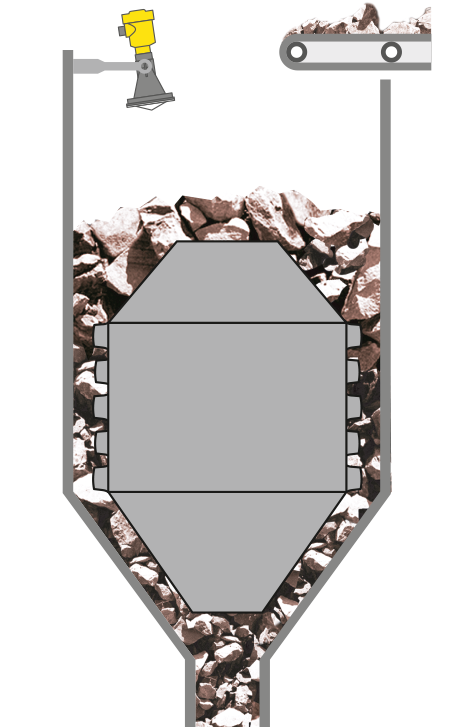

Level measurement in the crusher
Process data
Measuring task
Level measurement
Measuring point
Crusher
Measuring range up to
20 m
Medium
Ore
Process temperature
0 … +30 °C
Process pressure
0 … 0 bar
Special challenges
Dust generation, filling noise
Application
To be able to transport and further process the largest possible production volumes, the ore must have an optimal size. To achieve this, the ore is crushed to the correct size in two stages, in a primary and then a secondary crusher. In order to enable an optimum throughput, and avoid choking or damaging the crusher, a reliable level measurement is required.
Your benefit
Reliable
Reliable measurement even during filling
Cost effective
Optimal utilization of the container volume
User friendly
Simple mounting and setup
Recommended products
VEGAPULS 69
Non-contact level measurement with radar in the crusher
- Reliable measurement despite intense dust generation
- High reliability ensured through noise immunity
- Wear and maintenance-free, as measurement is non-contacting
Measuring range - Distance
120 m
Process temperature
-40 ... 200 °C
Process pressure
-1 ... 20 bar
