Sintering plant
Level measurement in the sintering plant
Process data
Measuring task
Level measurement
Measuring point
Conveyor belt
Measuring range up to
5 m
Medium
Limestone, coke, sinter mix
Process temperature
+800 … +1000 °C
Process pressure
0 … 0 bar
Special challenges
Dust, extreme heat
Application

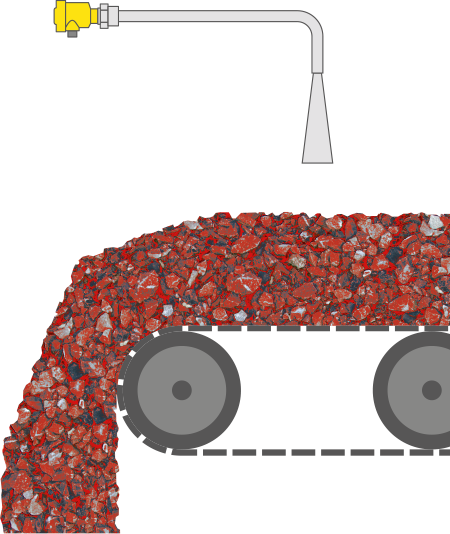

After sintering, the hot material is cooled down to a temperature of about 150 °C in the sintering cooler. The feed rate of the sintering belt is controlled to ensure that the material is thrown off at the end of the sintering belt. To achieve effective cooling, the thickness of the material on the sintering belt has to be continuously and precisely measured.
Your benefit
Reliable
Reliable measurement ensures optimal process flow
Cost effective
Maintenance-free measurement despite high temperatures
User friendly
Simple mounting and setup
Recommended products
VEGAPULS 68
Non-contact radar level measurement on the sintering belt
- Reliable measurement, independent of temperature changes
- Wear and maintenance-free for high plant availability
- Easy antenna cleaning via purging air connection
Measuring range - Distance
75 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
