Level measurement and point level detection in alumina powder silos
Category: Mining and metal processing
Specifications
Details
Alumina powder silo
Level measurement and point level detection in alumina powder silos
Process data
Measuring task
Level measurement and point level detection
Measuring point
Silo
Measuring range up to
60 m
Medium
Alumina powder
Process temperature
0 … +80 °C
Process pressure
0 … 0 bar
Special challenges
Dust generation, tall containers
Application
The alumina powder is kept ready in storage and day silos for subsequent smelting. Aluminium smelting is carried out in the fused salt electrolysis process, where pure liquid aluminium is extracted from aluminium oxide. Optimal storage is ensured by level measurement and point level detection.
Your benefit
Reliable
Reliable content measurement of alumina
Cost effective
Maintenance-free operation
User friendly
Simple mounting and setup
Recommended products
VEGAPULS 69
Non-contact level measurement with radar in storage silos
- Reliable measurement, unaffected by dust
- Easy sensor alignment via aiming flange and alignment app for smartphone
- Maintenance-free operation thanks to encapsulated antenna system
Measuring range - Distance
120 m
Process temperature
-40 ... 200 °C
Process pressure
-1 ... 20 bar

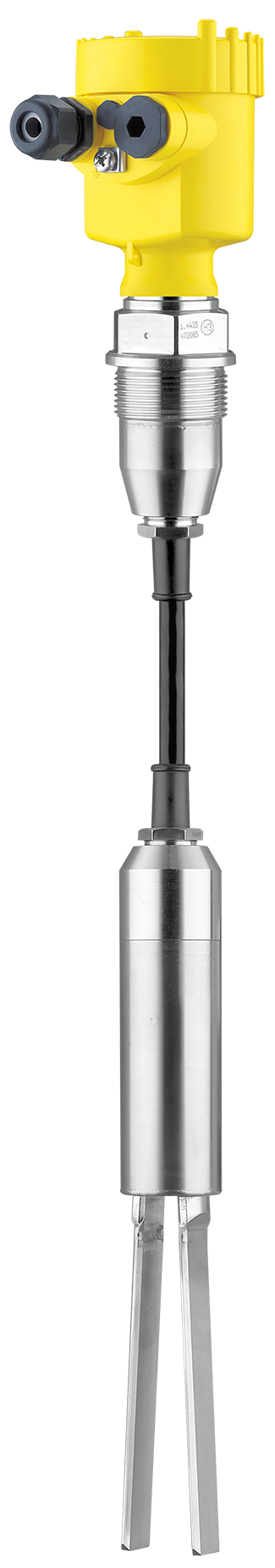

VEGAWAVE 62
Vibrating level switch as overfill protection in storage silos
- Reliable function through product-independent switching point
- Immune to buildup
- Simple setup without adjustment
Process temperature
-40 ... 150 °C
Process pressure
-1 ... 6 bar
Version
Detection of solids in water
Suspension cable
