Details
Additive silos

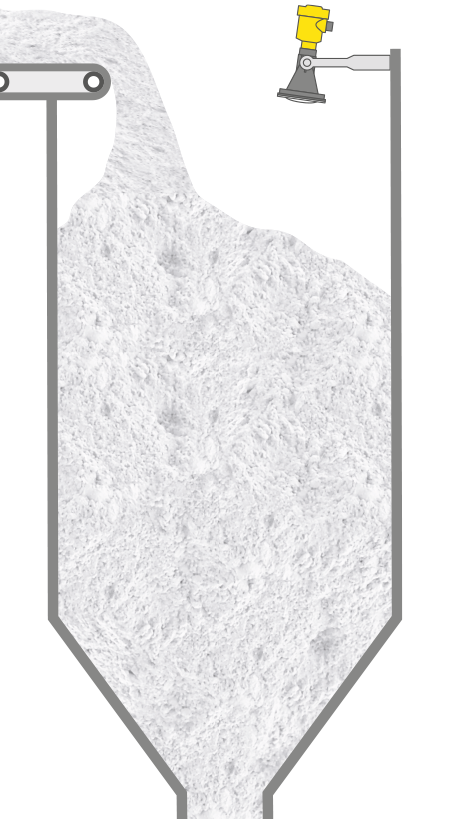

Level measurement in additive silos
 |
|
Process data
Measuring task
Level measurement
Measuring point
Silo
Measuring range up to
30 m
Medium
Additives
Process temperature
0 … +30 °C
Process pressure
0 … 0 bar
Special challenges
Intense dust generation, abrasive media
Application
Depending on the manufacturing process and the type of metal being produced, various additives such as lime are required. The products are stored in silos or concrete bunkers and usually fed to the process via conveyor belts. For cost-effective storage of these materials, level measurement in the silo contents is essential.
Your benefit
Reliable
High measurement certainty despite varying reflective properties of the medium
Cost effective
Maintenance-free operation
User friendly
Simple mounting and operation
Recommended products
VEGAPULS 69
Non-contact level measurement with radar in the additive silo
- Reliable measurement despite strong dust generation
- Maintenance-free operation through non-contact measurement
- Easy alignment of the measuring instrument via integrated swivelling holder and app for smartphone
Measuring range - Distance
120 m
Process temperature
-40 ... 200 °C
Process pressure
-1 ... 20 bar
View more about Level measurement in additive silos on main site
