Level measurement and point level detection in storage tanks for toxic liquids
Category: Mining and metal processing
Specifications
Details
Storage tanks for toxic liquids

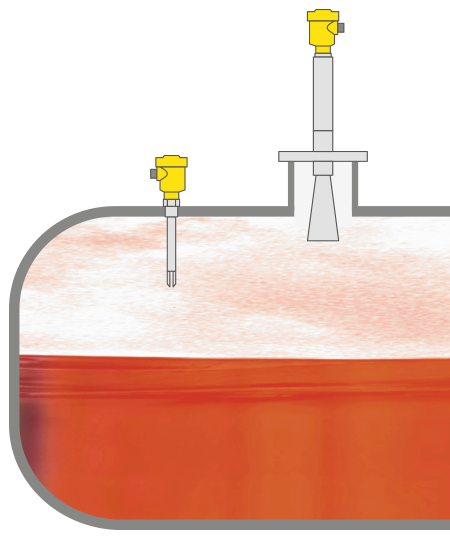

Level measurement and point level detection in storage tanks for toxic liquids
Process data
Measuring task
Level measurement and point level detection
Measuring point
Tank
Measuring range up to
35 m
Medium
Toxic liquid media
Process temperature
-50 … +250 °C
Process pressure
-1 … +64 bar
Special challenges
Highly toxic media, chemically aggressive media, volatile media
Application
Some processes generate toxic intermediates that have to be stored in compliance with strict safety regulations. In order to be used in this area, the measurement technology deployed must meet special safety requirements when it comes to design and functional reliability. A trustworthy level measurement is critical for the storage of these toxic materials.
Your benefit
Reliable
Configuration of the measuring system provides maximum safety for personnel and the environment
Cost effective
High availability and maintenance-free operation
User friendly
User friendly Simple installation and setup
Recommended products
VEGAPULS 62
Continuous level measurement with radar in the storage tank for toxic media
- Maximum safety with toxic media thanks to ceramic process isolation and additional glass feedthrough
- Highly corrosion resistant materials ensure a long service life
- Maintenance-free operation of the measuring system
Measuring range - Distance
35 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
VEGASWING 63
Vibrating level switch for point level detection in the storage tank for toxic media
- Universally applicable for almost all liquids
- Additional safety through additional glass feedthrough that ensures a further separation from the process (Second Line of Defense)
- Test button for easy checking of the measuring instrument during operation
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
Version
Standard
Hygienic applications
with gas-tight leadthrough
with tube extension
with temperature adapter
