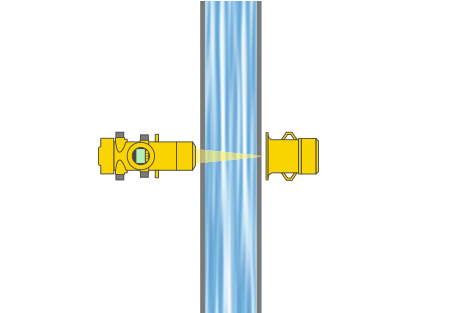

Pipeline in the liquor recovery process
Density measurement in liquor recovery
Process data
Measuring task
Density measurement
Measuring point
Pipeline
Measuring range up to
Density
Medium
Cooking liquor
Process temperature
+120 … +130 °C
Process pressure
+2 … +3 bar
Special challenges
The liquor contains organic residual substances
Application
The black liquor resulting from pulp cooking is regenerated and fed back into the digester. Liquor regeneration comprises several process steps. The processes take place at high temperatures and pressures; the media are aggressive and sometimes abrasive. Density measurement of the liquor in the pipelines is required for eco-friendly and energy-efficient process control.
Your benefit
Reliable
Reliable operation despite extreme process conditions
Cost effective
Density measurement from the outside, without invasive changes to the pipe
User friendly
Optimized for the application, long-term maintenance-free measurement
Recommended products
MINITRAC 31
Density measurement with radiation for energy-efficient liquor regeneration
- Enables automation of liquor regeneration process
- Non-contact measurement right through the vessel wall
- Maintenance-free operation
Measuring range - Distance
-
Process temperature
-40 ... 60 °C
Process pressure
-
VEGASOURCE 31
The source holder serves as a housing for the radiation capsule and protects it from external influences
- Minimal space requirements and simple mounting
- Operational reliability and safety with pneumatic shutter on the source holder
- Optimum shielding allows use without a restricted access area
Ambient temperature
-20 ... 80 °C
View more about Density measurement in liquor recovery on main site
