Details
Headbox
Pressure measurement in the headbox
Process data
Measuring task
Pressure measurement
Measuring point
Pipe
Measuring range up to
10 bar
Medium
Paper suspension
Process temperature
+20 … +50 °C
Process pressure
0 … +10 bar
Special challenges
High humidity and warm measuring environment
Application

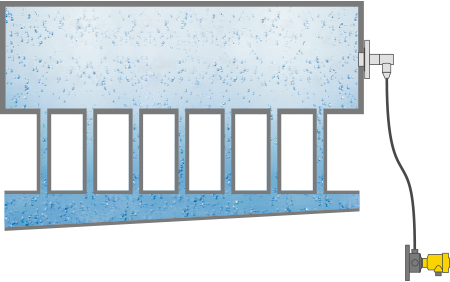

The paper suspension is pumped into the headbox of the paper machine. Via the hydraulically pressurized headbox it passes through a tapered cross-flow distributor and manifold, through the rectangular discharge opening, or slice, onto the screen. The outflow speed of the suspension is adjusted to match the speed of the screen by adjusting the pressure of the headbox feed pump. This means an accurate pressure measurement, with minimal turbulence created in the headbox is vital at this part of the process.
Your benefit
Reliable
Highly accurate measured values, precise control input for the headbox pump
Cost effective
No flushing pipes needed
User friendly
High protection class IP 68 for easy cleaning
Recommended products
VEGABAR 82
Process pressure measurement in the headbox for speed control of the stock pump
- Absolutely front-flush installation in the wall of the headbox
- No effect on the application of slurry to the sieve
- CERTEC® measuring cell guarantees a high accuracy
Measuring range - Distance
-
Measuring range - Pressure
-1 ... 100 bar
Process temperature
-40 ... 150 °C
