Level measurement and point level detection in the storage tank for wet strength agent
Category: Paper industry
Specifications
Details

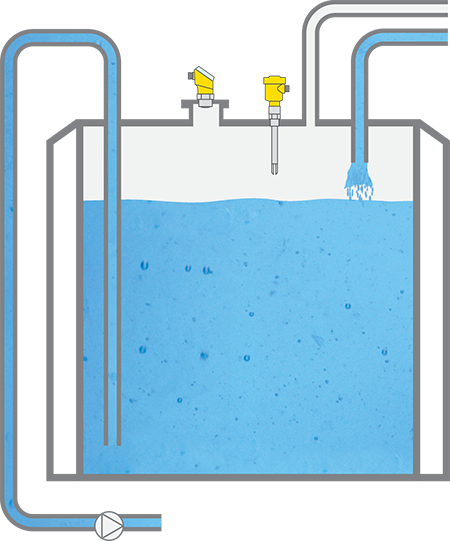

Storage tank for wet strength agent
Level measurement and point level detection in the storage tank for wet strength agent
Process data
Measuring task
Level measurement and point level detection
Measuring point
Tank
Measuring range up to
5 m
Medium
Wet strength agent
Process temperature
+20 … +40 °C
Process pressure
0 … 0 bar
Special challenges
Aggressive, water contaminating medium, high importance on the availability of the measurements
Application
Wet strength agents are polymeric additives that increase the water resistance particularly of hygienic and specialty papers. These are applied in the paper machine via a size press or spraying device. Because of their high pH value, these substances are stored in double-walled GRP (glass reinforced plastic) tanks. For safety and operational reasons, multiple level measurements are needed in these tanks.
Your benefit
Reliable
Reliable filling with overfill protection and leak sensors
Cost effective
Maximum utilization of the container volume thanks to continuous level measurement
User friendly
Direct reading of the measured value at the additive station
Recommended products

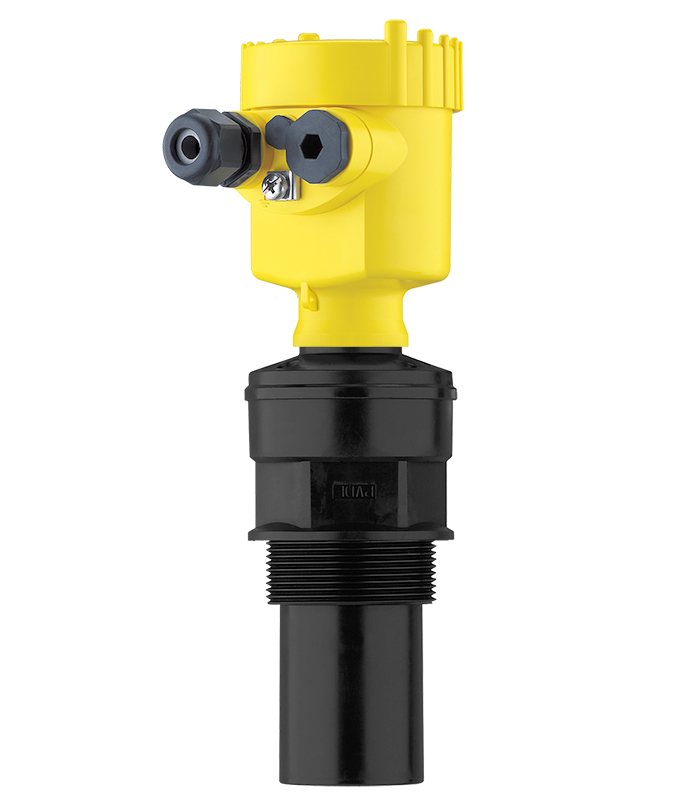

VEGASON 62
Level measurement with ultrasound in the wet strength agent storage tank
- Non-contact, maintenance-free level measurement
- Highly resistant materials for long operational life
- Reliable function, independent of medium properties
Measuring range - Distance
8 m
Process temperature
-40 ... 80 °C
Process pressure
-0.2 ... 2 bar
VEGASWING 63
Vibrating level switch as overfill protection in the storage tank
- Simple function test via keystroke
- WHG-approved instrument provides legal certainty
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
Version
Standard
Hygienic applications
with gas-tight leadthrough
with tube extension
with temperature adapter
