Blending bed
Level measurement of the blending bed
Process data
Measuring task
Level measurement
Measuring point
Stockpile
Measuring range up to
30 m
Medium
Rocks
Process temperature
-40 … +50 °C
Process pressure
0 … 0 bar
Special challenges
Dust, noise
Application

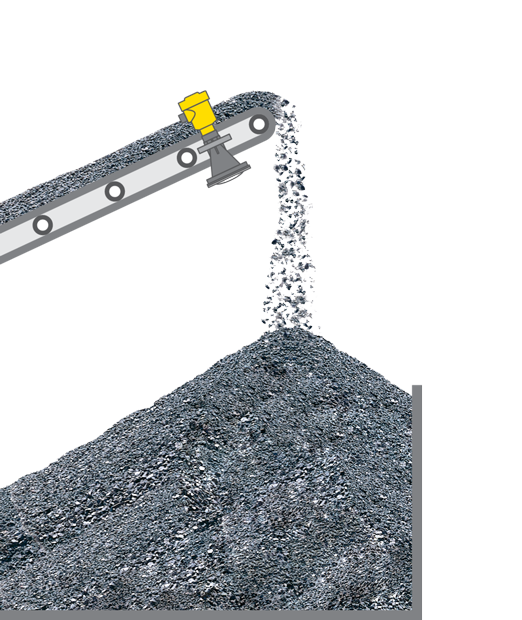

To attain high quality and uniform material consistency in the finished cement, the raw material is homogenized in a so-called blending bed. The rock is distributed evenly over the blending bed with a stacker. Material is removed with a scraper. To ensure that the incoming material is distributed as evenly as possible, the level must be continuously measured.
Your benefit
Reliable
Reliable measurement even with strong dust generation
Cost effective
Optimum storage capacity utilization
User friendly
Maintenance and wear-free
Recommended products
VEGAPULS 69
Level measurement with radar in the blending bed
- Precise measurement through good focusing
- High measurement certainty, even with intense dust and noise generation
- Maintenance-free operation thanks to encapsulated antenna system
Measuring range - Distance
120 m
Process temperature
-40 ... 200 °C
Process pressure
-1 ... 20 bar
