Level measurement and point level detection in raw meal silos
Category: Cement Industry
Specifications
Details
Raw meal silo

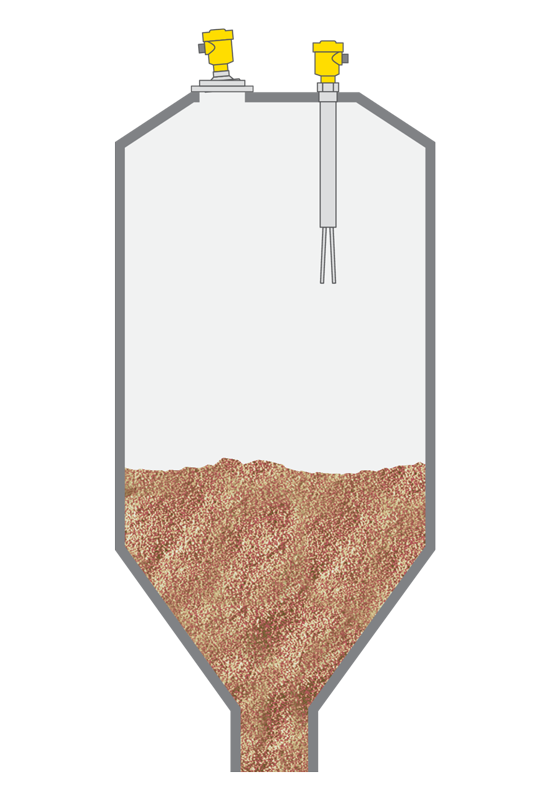

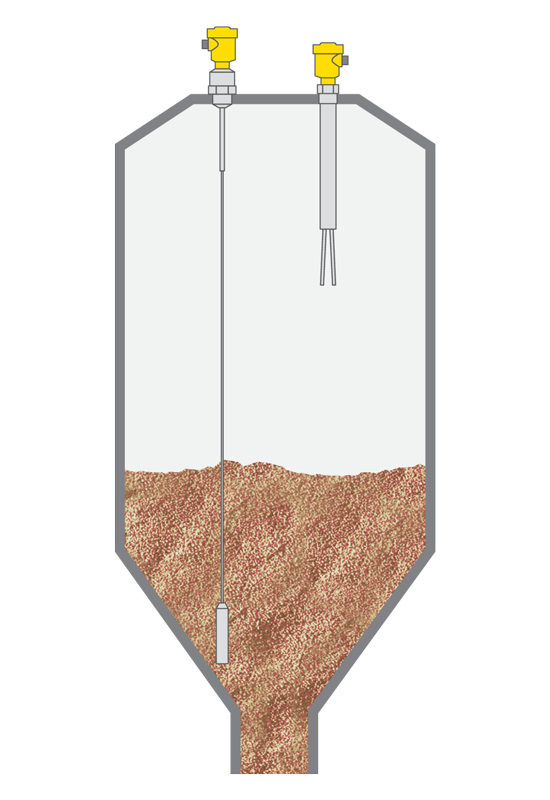

Level measurement and point level detection in raw meal silos
 |
|
Process data
Measuring task
Level measurement and point level detection
Measuring point
Silo
Measuring range up to
20 m
Medium
Raw meal
Process temperature
-40 … +50 °C
Process pressure
0 … 0 bar
Special challenges
Strong dust generation, buildup
Application
Before being burned in the rotary kiln, the material from the blending bed and the aggregates are ground to a fine raw meal in large mills. The powdery material is then transported to the silo by a pneumatic conveyor system. Reliable monitoring of the level is essential for optimal raw material storage.
Your benefit
Reliable
Reliable measurement ensures a continuous supply of raw material
Cost effective
Optimal stocks ensure continuous production
User friendly
Maintenance-free operation
Recommended products
VEGAPULS 69
Level measurement with radar in raw meal silos
- Reliable measurement, unaffected by dust and buildup
- Maintenance-free operation thanks to encapsulated antenna system
- High plant availability, because wear and maintenance-free
Measuring range - Distance
120 m
Process temperature
-40 ... 200 °C
Process pressure
-1 ... 20 bar
VEGAWAVE 63
Vibrating level switch as overfill protection in raw meal silos
- Reliable product-independent switching point
- Long service life thanks to robust sensor construction
- Simple setup without adjustment
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 25 bar
Version
Detection of solids in water
with tube extension
with temperature adapter
