Level measurement and point level detection in tanks for liquid fuels
Category: Cement Industry
Specifications
Details

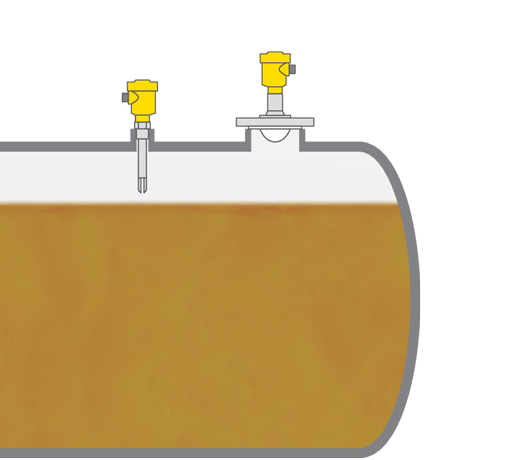

Tank for liquid fuels
Level measurement and point level detection in tanks for liquid fuels
 |
|
Process data
Measuring task
Level measurement and point level detection
Measuring point
Tank
Measuring range up to
5 m
Medium
Fuel oil, heavy oil
Process temperature
-10 … +80 °C
Process pressure
0 … 0 bar
Special challenges
Media with low dielectric constant
Application
Large amounts of energy are needed to burn clinker in rotary kilns. Substitute liquid fuels such as spent oils or recovered solvents are often used for this purpose. The fuel storage tanks often contain a mixture of solvents, which can produce fumes and vapours in the air space. Due to the large amount of energy needed in cement production, the fuel inputs represent a significant cost factor, so accurate level measurement is essential.
Your benefit
Reliable
Reliable measurement under all operating conditions
Cost effective
Optimal storage
User friendly
Maintenance-free operation
Recommended products
VEGAPULS 64
Level measurement with radar in tanks for liquid fuels
- Good focusing means reliable measurement right down to the bottom, thanks to 80 GHz technology
- Reliable measurement, independent of product properties
- Simple installation in small mounting sockets allows universal use
Measuring range - Distance
30 m
Process temperature
-196 ... 200 °C
Process pressure
-1 ... 25 bar
VEGASWING 63
Vibrating level switch for protection against overfilling in liquid fuel tanks
- Accurate and reliable function through product-independent switching Point
- Reliable point level detection in compliance with SIL2 and WHG
- Adjustment-free setup and maintenance-free operation
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
Version
Standard
Hygienic applications
with gas-tight leadthrough
with tube extension
with temperature adapter
